Concept Design Of Hexa-copter For Prototyping.

Project Description:

This Has Designed in Catia V5 for the Prototype Studies in Numerical Methods in Ansys Mainly to Study the Aerodynamics Performance of the Motors.

Design Description:-

It is having 6Motors and a battery to provide the power Supply, antena for the Controlling Purpose,

6landing gears with a set of weels on each one and

a high definetion camera for the survailance

purpose.

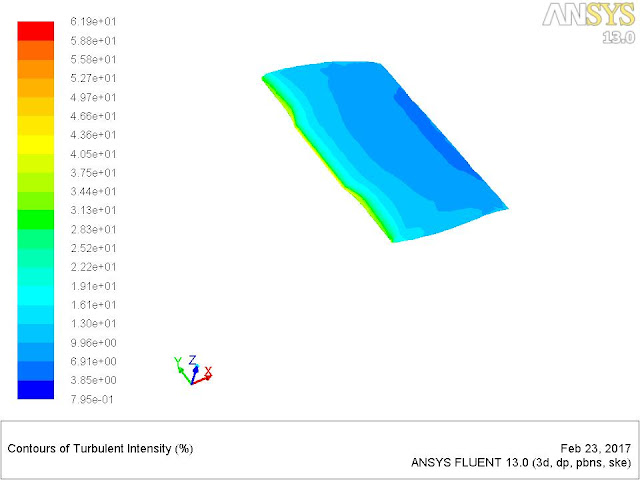

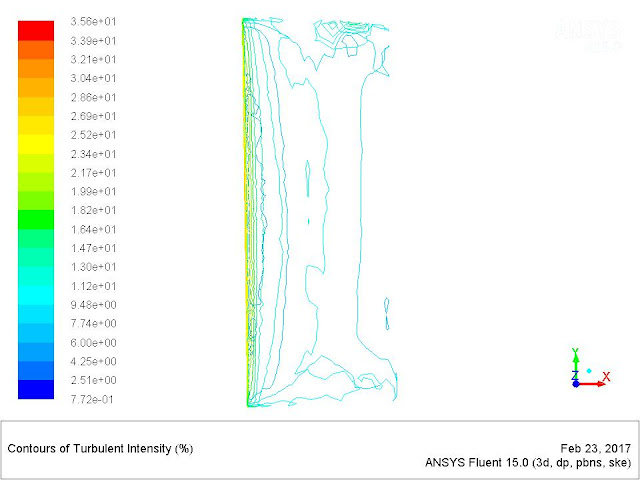

Study on Transition Delay On Aircraft Gloved Wing In Fluent.

Project Description:-

Comparative study on two wings, one with glove and one without glove. he needs you to run 4 simulations, 2 on each wing requires result.

Main AIM:

1. To delay the laminar to turbulent transition with the glove.

2. To Delay the Stall with the glove.

Deliverables

1. Mesh (Coarse also ok)

2. CP plot on the wing section (on 2d plane created in mid wing) (with glove and without glove)

3. CP plot on wing surface.

4. Mach plot on wing surface

5. Pathlines (with and without glove)

Assembly For Food Storage.

    Project Description:-1.   Food trolley to store and supply the food  in Hospitals. The system contains a freezer to freeze the food and a heater to heat the food and it can be operated   by two men. It has provided the trays to place the food followed by two compartments with   minimum gap to circulate the air to freeze and heat the food. It has Provided two way doors to   operate in either Directions and Provided the Detailing for the Whole Technology it took 45 hrs.
